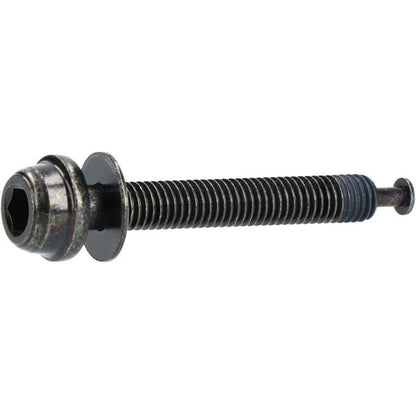

Shimano Caliper Fixing Bolt Type C for Rear Flat Mount
38mm steel screw length for 25mm frame thickness. The self-locking thread screw to mount the Shimano Flat-Mount brake caliper to frames is available in different lengths for different strut diameters.

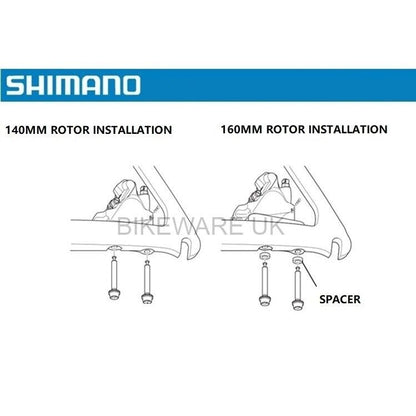

Assembly of brake caliper behind the chainstays (140 mm rotors)
Assembly of SM-MA-R160-DD adapter on the chainstays (160 mm rotors)
Compatibility - Rear Flat Mount 25mm frame / 38mm length
Shimano Ultegra BR-R8170
Shimano Ultegra BR-R8070
Shimano 105 BR-R7170
Shimano 105 BR-R7070
Shimano Tiagra BR-4770
Shimano Deore XT BR-M8110
Shimano SLX BR-M7110
Shimano GRX BR-RX810
Shimano GRX BR-RX400
Shimano BR-RS805
Shimano BR-RS405
Shimano BR-RS305
Shimano BR-UR300
Shimano Metrea BR-U5000
Package contains
1 x Shimano 38mm steel Caliper Fixing Bolt Type C for Rear Flat-Mount (Snap ring is not included)
